This is elite self-hosting, lol. I want more of this content.

Ordered two Ratgdos yesterday. Hopefully the wait isn’t too long.

lol, just get a dumb opener and a shelly relay or use a meross unit. Super cheap and flawless local control that is cloud-connected if you want it.

I connected my sectional garage door using a Shelly 1, an Aqara vibration sensor and the contact sensor from my alarm system (but you can use an Aqara door sensor), using Home Assistant to create a “virtual” door that does all the things.

Put the vibration sensor around the bottom of the door. Connect the Shelly to the hardware button you have somewhere in your garage, set it to toggle off after 1 second (simulating a button click basically). In Home Assistant do something like this:

- platform: template
  covers:
    garage_door:
      device_class: garage
      friendly_name: "Garage Door"
      value_template: >-
        {% if is_state( "binary_sensor.garage_door_contact_sensor", "off") %}
          closed
        {% elif states( "sensor.garage_door_vibration_sensor_angle_y") | int < 10 %}
          open
        {% elif is_state( "binary_sensor.garage_door_vibration_sensor_vibration", "on") %}
          opening
        {% else %}
          open
        {%- endif %}
      open_cover:
        service: script.disarm_alarm_if_armed_then_open_garage_door
      close_cover:
        service: switch.turn_on
        data:
          entity_id: switch.garage_door_shelly_1
      stop_cover:
        service: switch.turn_on
        data:
          entity_id: switch.garage_door_shelly_1
      icon_template: >-
        {% if is_state( "binary_sensor.garage_door_contact_sensor", "off") %}
          mdi:garage
        {% elif states( "sensor.garage_door_vibration_sensor_angle_y") | int < 10 %}
          mdi:garage-open
        {% elif is_state( "binary_sensor.garage_door_vibration_sensor_vibration", "on") %}
          mdi:garage-alert
        {% else %}
          mdi:garage-open
        {%- endif %}

Basically if the contact sensor is off (means there is contact), the door is closed. If the vibration sensor angle is < 10 (check your values, this works for me), the door is open (the sections are now horizontal). If the vibration sensor senses vibrations, the door is currently moving. Otherwise report “open”, because that’s the worst state and if something doesn’t work, I want the worst state to be reported. Now you have a “cover”, which in Home Assistant is a class that has custom UIs and logic to handle the door. Whenever I click the open button or call the command from anywhere, “disarm_alarm_if_armed_then_open_garage_door” is called, meaning I can’t make the alarm go off by accident.

I have an automation that when I get near my house, it checks if my alarm is on and sends me a notification with 2 actions:

• disarm alarm
• disarm alarm and open garage door

PS: Looking back at my code, I should add a condition to both “open_cover” and “close_cover”, to check if the door is opening, making it fail (or just do nothing), because while moving, pressing the button would stop the door, not make it go in the reverse direction. But it’s been 4 months with this integration and it works great.

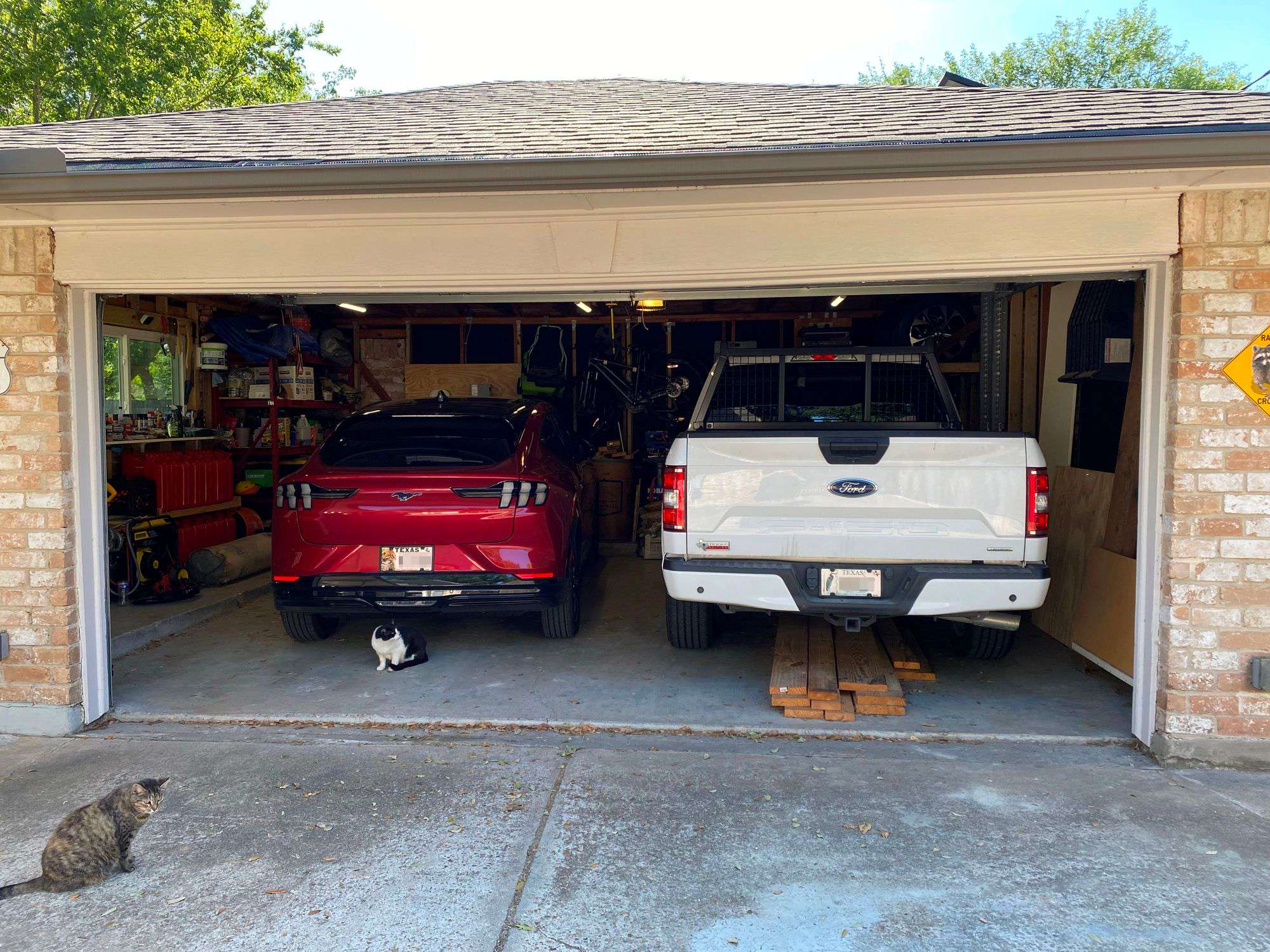

No idea what this is about but upvoted for the cats

Happy customer of open garage. It just worked for me.

Great post with lots of detail! I have had MyQ for years and hated it pretty much at first use. Back then, they were asking for a monthly fee for the “privilege” of integrating it with Google.

Since the MyQ integration for HA is now dead, I have ordered a Ratgdo and am patiently waiting for it to arrive. I tried the Anthom.tech opener, but that does not work with most Chamberlain/Lift master opener made after 2011.

I’ve got one of these with the esphome firmware. Can’t speak to their service or the original firmware, but the esphome needed some tweaks.

konnected.io/products/smart-garage-door-opener

I already had a magnetic reed switch and it has an input for that. I already had an extra security 2.0 button with wires soldered to the contacts. I’m very happy with the setup.

I use a Wemos D1 mini and relay with esphome, and a reed switch. Our door is a panel roller, so I’m looking to add a hall effect sensor to determine %age opened/closed, so I can do things like open just a couple of inches for airflow, etc.

I’ve been using an open garage device I ordered from opengarage.io for years. It works great with home assistant or by itself. (their opensprinkler control is great too)
